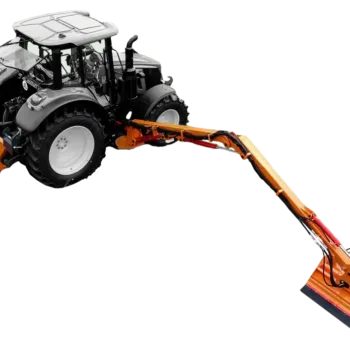

RASCO Front Boom Mower – KKM
The KKM front boom mower, boasting over a 3.5-meter reach, is tailored for road vegetation maintenance, offering versatility and efficiency in various environments:
- Compact Design: The mower’s compact size makes it well-suited for urban, rural, and hard-to-reach areas.
- Municipal Compatibility: Designed to work seamlessly with small municipal vehicles, enhancing its adaptability for diverse maintenance tasks.
- Adjustable Front Frame: Equipped with a front frame featuring slide rails, supporting two hydraulically operated arms and a mowing head at the top of the upper arm.
- Mowing Head Flexibility: The mowing side can be easily changed, allowing for adaptability to different vegetation types and mowing requirements.
- Versatile Equipment: Accommodates various mowing heads and hedge trimmers, providing a versatile solution for a range of vegetation maintenance needs.
| KKM | |
| Depth | 45.6″ (1.2 m) |
| Transportation Width | 66.9″ (1.7 m) |
| Transportation Height | 49.2″ (1.3 m) |
| Sliding Area | 51.2″ (1.3 m) – Horizontal movement of boom arm |

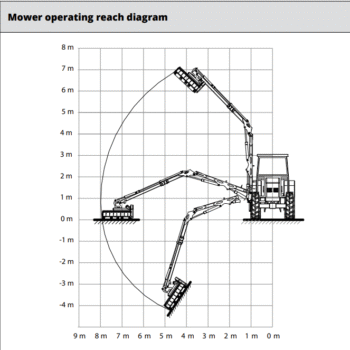

| Max Reach from Centre | 139.8″ (3.6 m) |
| Cutting Width | 39.4″ (1 m) |
| Attachments | Mowing head and Hedge trimmer |
| Standard Features | SelectMotion control system, mowing on both sides, made from high quality steel |
| Options | TotalMotion control system, Counterweight with storage legs with jacks and wheels |
Intuitive control systems
The control of all Rasco’s Crane Mowers is enabled through an advanced control system located inside the vehicle cabin. It consists of a joystick for crane arms and working tools operation, and a colour display with working commands for mower relief, floating position, and additional functions.
Depending on the terrain which is being maintained, and user preferences, there are two control systems available:
SelectMotion
Selective proportional control makes it easy to operate the mower’s boom arm and working tool on tough terrains. When you move the joystick, it activates a specific hydraulic cylinder, meaning you need to move the joystick more to position the boom arm where you’d like it.
TotalMotion
Fully proportional control is designed for challenging terrains with obstacles, requiring constant maneuvering of the boom arms. Using the joystick enables swift adjustments to the boom arm position by moving multiple cylinders with a single joystick motion.
