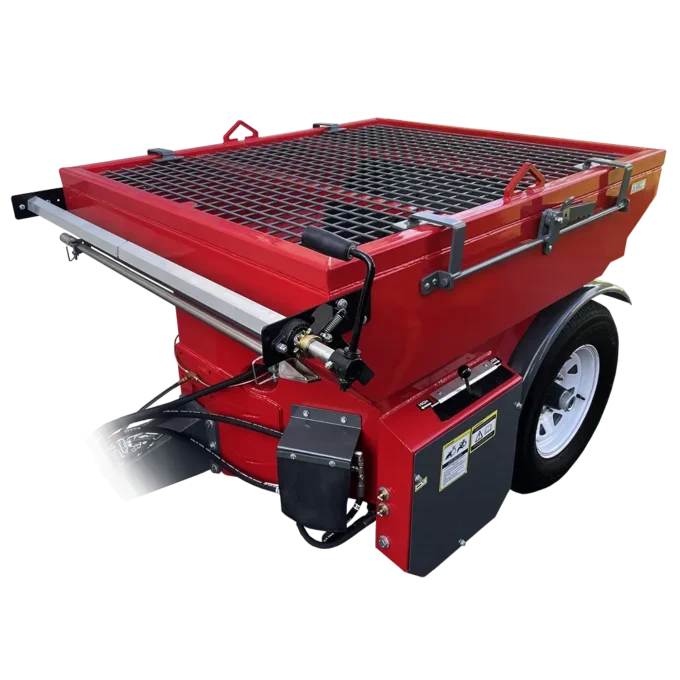

METEC Tow Behind Spreader – TBS48
Introducing METEC’s Tow Behind Spreader, the ultimate solution for all your spreading needs, setting the standard for spreading efficiency and effectiveness. Key Features include:
- Ample Capacity: With a 1 cu yd capacity, it minimizes refill frequency, maximizing productivity.
- Wide Spreading Width: Featuring a 39.5” (1 m) spreading width, it covers large areas efficiently.
- Precise Control: Equipped with hydraulic surge brakes, agitator, and adjustable spreading volume for precise spreading control.
- Built for Durability: Anti-friction panels prevent clogging, while lockable yet easy-to-open grate retainers ensure lasting performance.
- Easy Attachment: Easily attachable with an adjustable pintle hitch for quick setup and convenience.
| TBS48 | |||
| Capacity | 1 cu yd (800 ℓ) | ||
| Weight | 1,600 lbs (726 kg) | ||
| Hopper Width | 48” (1.2 m) | ||
| Spreading Width | 39.5” (1 m) | ||
| Overall Height | 46” (1.1 m) | ||
| Hitch Category | Pintle Hook, adjustable from 20” (508 mm) to 30” (762 mm) height | ||
| Standard Features | Hydraulic surge breaks, Single auger agitator, Adjustable spread volume/spring tension, Anti-friction panels in hopper, Adjustable hydraulic flow, Easy to open and lockable grate retainers | ||
| Options | IQ-100 Control System | ||
IQ-100 Compact Spreader Control System (optional):
The IQ-100 is a compact spreader control system for smaller vehicles, featuring a 7-inch touchscreen for easy rate selection. It includes self-diagnostics and remote troubleshooting via a mobile app. The system uses a Parker IQAN-MC41 Controller for hydraulic functions and detects vehicle speed through pulse signals or a J1939 interface, which also tracks key engine data. Spreading activity data can be accessed by AVL services through the J1939 connection.
 |
