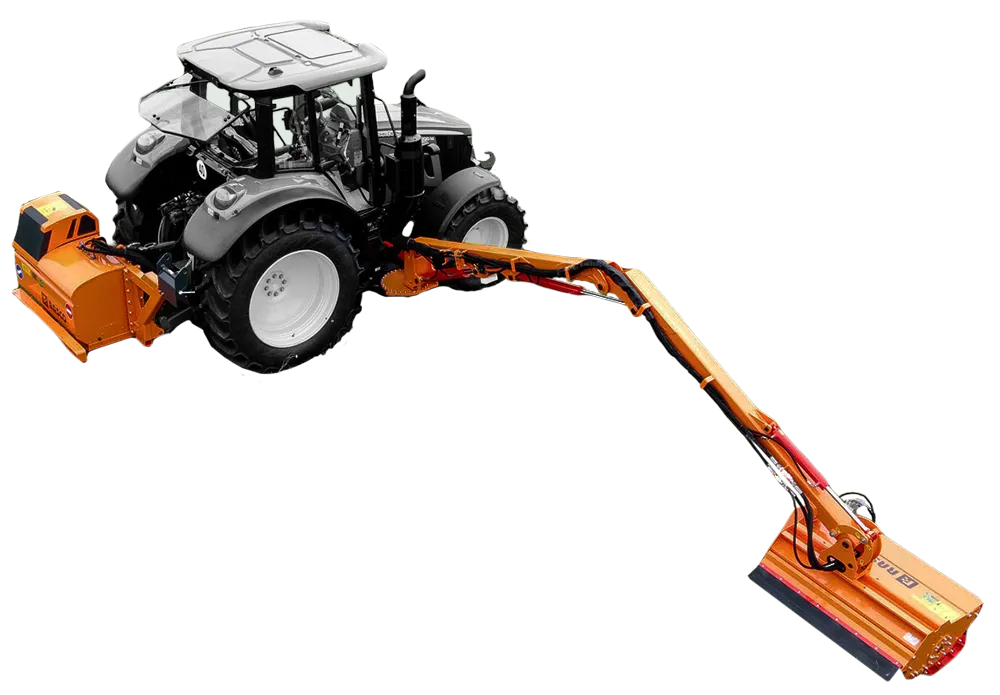

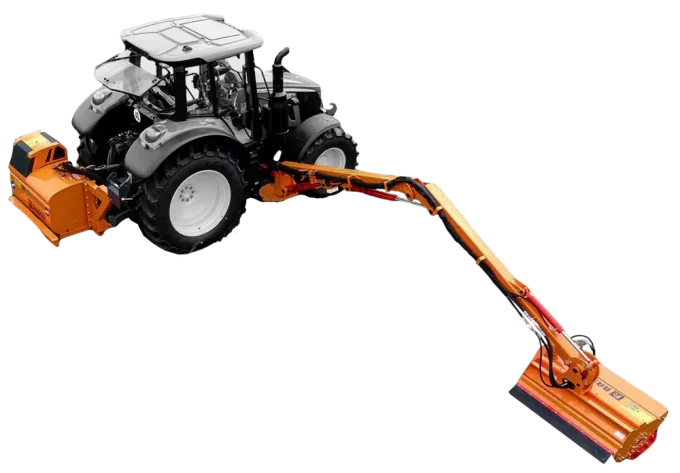

RASCO Side Boom Mower – BRK 5000, 6000, 7000, BRKT 8000
BRK/BRKT: A robust side boom mower tailored for demanding mowing duties along wide roadsides, water ditches, and channels. Key attributes include:
- Durable Build: Constructed to endure rigorous use.
- Municipal Compatibility: Engineered for safe integration with large tractors, securely attached to enhance stability.
- Operator-Friendly Design: Boom arm configuration optimizes operator comfort and safety by aligning the mower with the operator’s line of sight.
- Versatile Functionality: Adaptable to various mowing heads and hedge trimmers, accommodating a wide range of vegetation maintenance tasks.
| BRK 5000 | BRK 6000 | BRK 7000 | BRKT 8000 | |

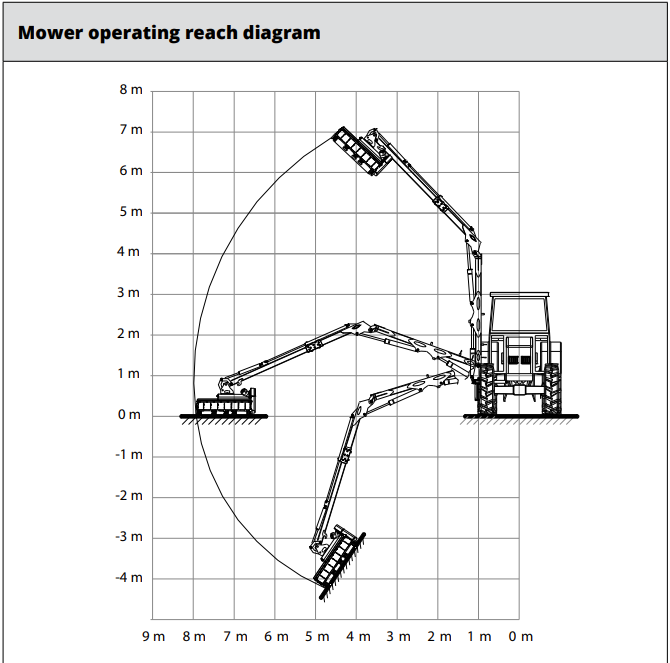

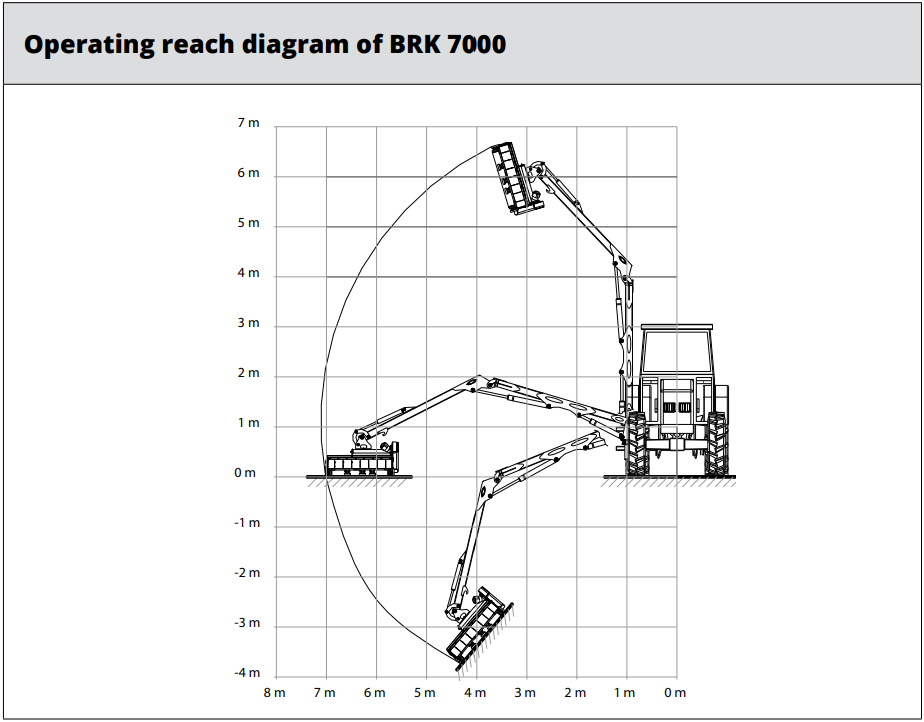

| Reach | 198″ (5 m) | 239″ (6 m) | 276″ (7 m) | 313″ (8 m) |
| Width | 106″ (2.7 m) | |||
| Height | 114” (2.9 m) | 122” (3.1 m) | 138” (3.5 m) | 146” (3.7 m) |
| Attachments | HYDRA mower – cuts 2” (50 mm) thick, TORNADO mower – cuts 1.2” (30 mm) thick, SRG branch cutter – cuts 3.9” (100 mm) thick, BM wire brush, KAN ditch cleaner | |||
| Standard Features | SelectMotion controller | |||
| Mounting | Custom mounting options available | |||
| Options | TotalMotion controller | |||
Intuitive control systems
The boom mower is controlled using an advanced unit inside the vehicle cabin. This unit includes a joystick for operating the crane arms and working tools, along with a color display for controlling mower relief, floating position, and extra functions.
Depending on the terrain which is being maintained, and user preferences, there are two control systems available:
SelectMotion
Selective proportional control makes it easy to operate the mower’s boom arm and working tool on tough terrains. When you move the joystick, it activates a specific hydraulic cylinder, meaning you need to move the joystick more to position the boom arm where you’d like it.
TotalMotion
Fully proportional control is designed for challenging terrains with obstacles, requiring constant maneuvering of the boom arms. Using the joystick enables swift adjustments to the boom arm position by moving multiple cylinders with a single joystick motion.
