RASCO Boom Mower – MAXIMA 8000, 9000, 10000

MAXIMA: Telescopic side boom mower with reach options of 8, 9, and 10 meters, ideal for road vegetation maintenance. Key features include:

  • Sturdy Construction: Built for heavy-duty use.
  • Suitability for Large Tractors: Compatible with large tractors, securely mounted for safe operation.
  • Optimal Operator Positioning: Boom arm design ensures safe and comfortable operation within the operator’s line of sight.
  • Versatile Equipment: Accommodates various mowing heads and hedge trimmers for diverse vegetation maintenance needs.

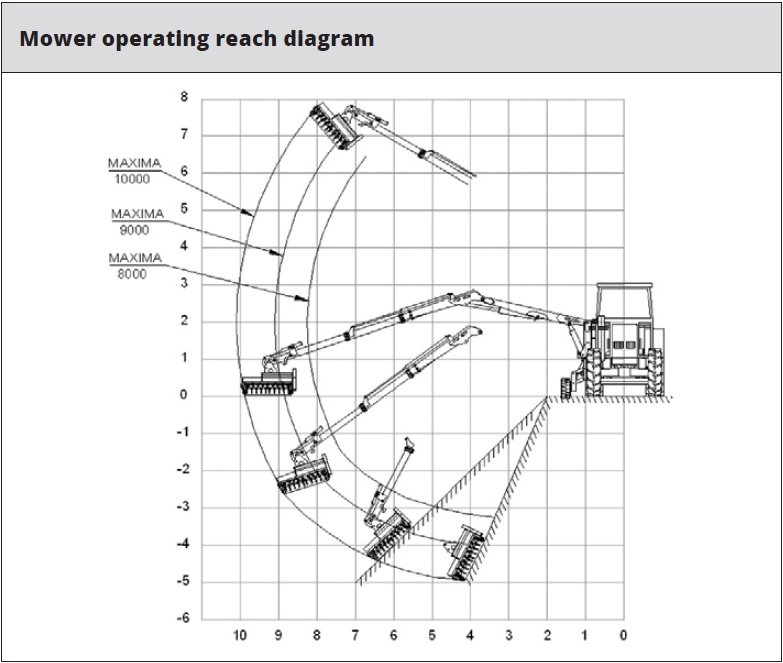

  • Industry-Leading Reach: Specifically crafted for clearing deep watercourses and high banks, its 10-meter crane arm is unmatched.

Spec Sheet

MAXIMA 8000 MAXIMA 9000 MAXIMA 10000
Reach 313″ (8 m) 354″ (9 m) 395″ (10 m)
Width 102” (2.6 m)
Height 152” (3.8 m)
Attachments HYDRA mower – cuts 2” (50 mm) thick, TORNADO mower – cuts 1.2” (30 mm) thick, SRG branch cutter – cuts 3.9” (100 mm) thick, BM wire brush, KAN ditch cleaner
Standard Features TotalMotion controller, Hydraulic oil cooler, Mower mounting frame


Intuitive control system
The boom mower is controlled using an advanced unit inside the vehicle cabin. This unit includes a joystick for operating the crane arms and working tools, along with a colour display for controlling mower relief, floating position, and extra functions.

Fully proportional control is designed for challenging terrains with obstacles, requiring constant maneuvering of the boom arms. Using the joystick enables swift adjustments to the boom arm position by moving multiple cylinders with a single joystick motion.
