Designed to work in combination with our drop sander/broadcast sander. This dump box will allow you to go that extra mile without having to refill your aggregate. Custom designed to fit your tractor.

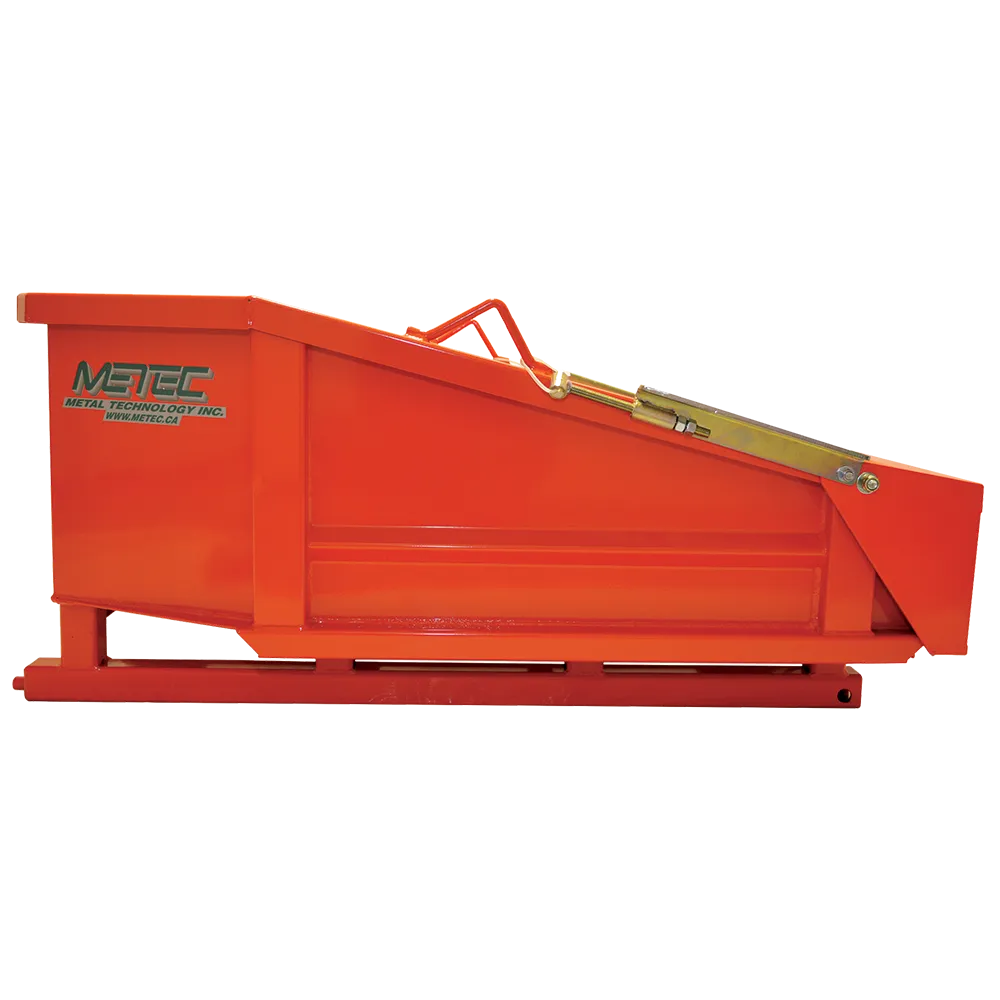

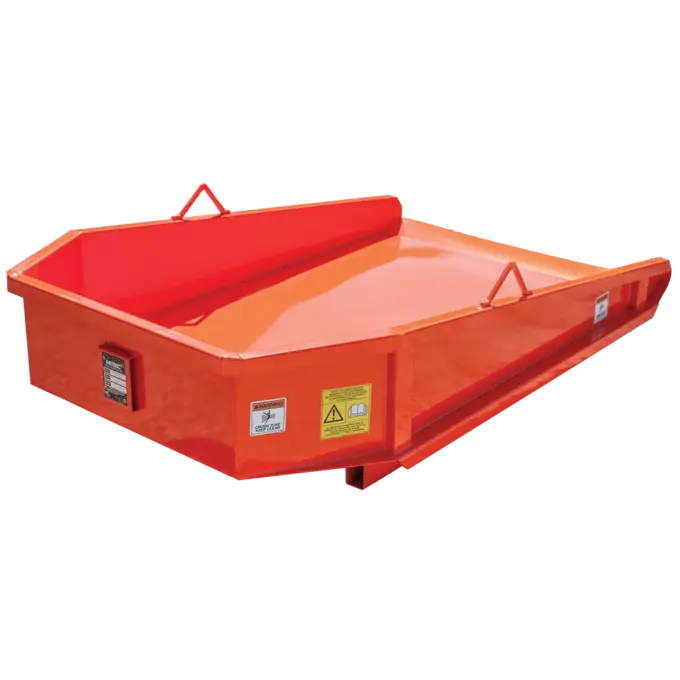

Dump Box – DB33, DB48, DB75, DB100
| DB33 | DB48 | DB75 | DB100 | DB100 | |
| Compatible Tractors | Holder C70, C270 | Holder C480 | Multihog CX75 | Holder C992 | Holder S100 Series |
| Weight | 230 lbs (104 kg) | 340 lbs (154 kg) | 250 lbs (113 kg) | 295 lbs (134 kg) | 315 lbs (143 kg) |
| Capacity | ~101 G (382 l) | ~151.5 G (573 l) | ~101 G (382 l) | ~151.5 G (573 l) | ~177 G (670 l) |
| Overall Width | 38.5″ (90 cm) | 43” (109 cm) | 43” (109 cm) | 42″ (107 cm) | 50” (127 cm) |
| Overall Height | 22.5″ (57 cm) | 21” (53 cm) | 16” (40.6 cm) | 20″ (51 cm) | 22” (56 cm) |
| Overall Length | 50” (127 cm) | 62” (157.5 cm) | 67” (170 cm) | 66” (168 cm) | 68” (173 cm) |
| Tailgate | Actuator Activated – on models with tailgate | ||||
| Steel Gauge | 11 Gauge | ||||
| Standard Features | Powder coated, Mild Steel | ||||
| Options | Custom designed to fit your tractor and application, Stainless Steel | ||||
*Above dimensions and weights are dependent on the model of tractor being used with. For other models please contact us for more details.
