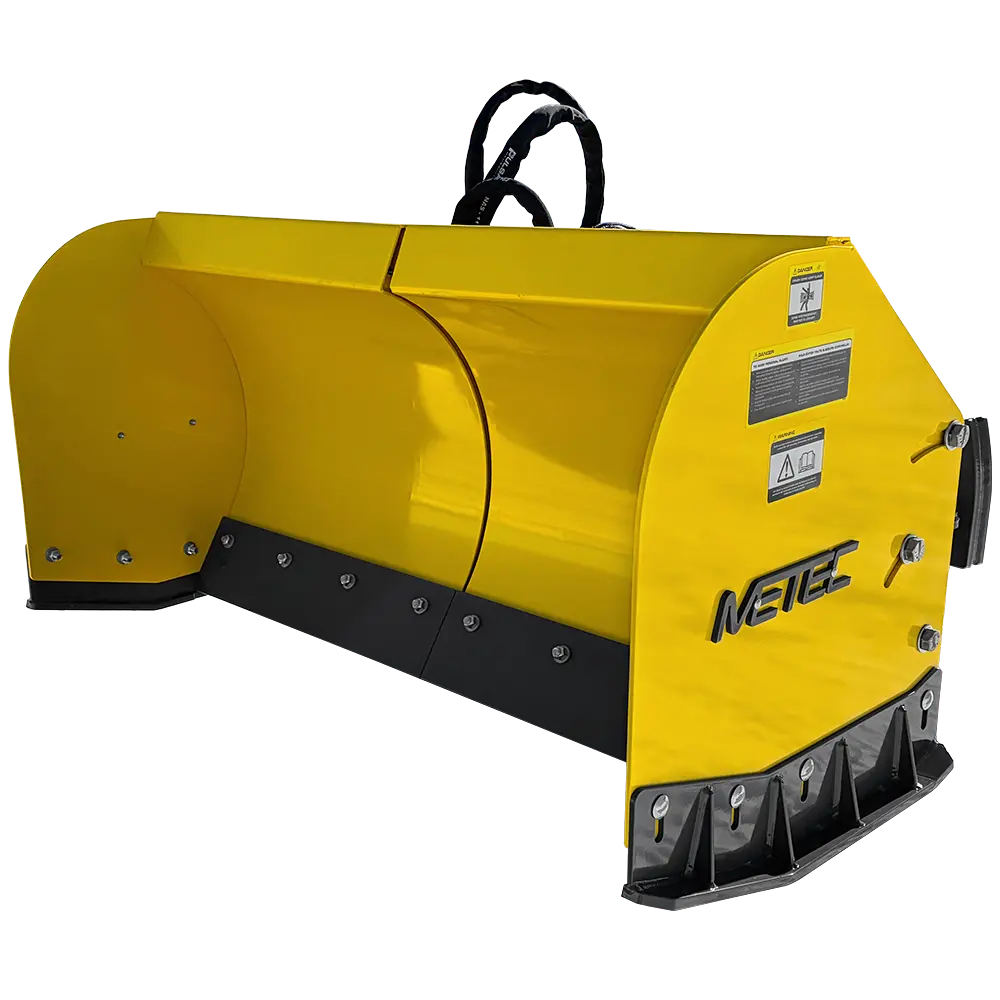

METEC Telescopic Angle Plow – APT
New telescopic plow design. Plows from 50″ to 74″ when fully expanded. Independently controlled wings on nylon blocks featuring a full trip design to ensure smooth operation. Custom sizes available.
- The cylinder bump stops prevent the cylinder from contracting and hitting the cylinder base.
- Made with a three-piece AR 400 cutting edge ensures unbeatable durability and strength.
- Offers up to a 30° angle that can be hydraulically or mechanically operated.
- One-trip edge keeps the plow intact when hitting obstacles.
| APT | |
| Weight | 900 – 1,100 lbs (408 – 499 kg) |
| Clearing Width | 50 – 74” (1.27 – 1.88 m) |
| Clearing Width at 28° | 44 – 66” (1.12 – 1.68 m) |
| Overall Width | 50 – 74” (1.27 – 1.88 m) |
| Mouldboard Height | 29″ (740 mm) |
| Swing Angle | 28° |
| Cutting Edges | Mild steel standard, x4 edges 1/2” x 6” (13 mm × 152 mm) |
| Power Requirements | 40 HP (30 kW) |
| Standard Features | Cylinder stop, Relief valve, Wings controlled independently, Full trip design, Nylon blocks to guide wings |
| Hitch Category | CAT I, CAT II, CAT II with lifting balls, Custom mounts available (2” / 51 mm Roundbar, Skid steer, A frame) |
| Options | 12″ Pusher Plates, Hardened Blade, Carbide Blade, Caster Wheels, Custom Colours, Custom Sizes |
