Screw Jacks
Screw jacks convert rotary input into controlled linear motion for pushing, pulling, lifting, positioning, and holding loads. A worm gear or bevel gear turns a self-locking trapezoidal or ball screw, giving precise, repeatable movement without a separate braking system. METEC supplies five worm gear and bevel gear series covering loads from 250 kg to 200,000 kg, for use singly, in tandem, or as multi-point synchronized lifting systems.
Worm Gear Screw Jack
SHE
The longest-established series in the line, built for high loads that must be lifted accurately, positioned precisely, and held securely at moderate duty cycles and lifting speeds.
Features and Benefits:
- Load range: 500 kg (1,100 lbs) – 200,000 kg (441,000 lbs)
- 14 sizes, capacities 5 – 2000 kN
- Drive-motor speed up to 1500 rpm
- Self-locking trapezoidal screw, optional ball screw
- Grease-lubricated
- Worm gear/wheel sets in two ratios (normal “N” and slow “L”)
- Worm gear and shafts case-hardened and ground
Worm Gear Screw Jack
MERKUR
A compact, cubic-housing series for loads that need positioning under moderate duty cycles and low dynamic loading. Universal mounting simplifies alignment during installation.
Features and Benefits:
- Load range: 250 kg (550 lbs) – 50,000 kg (110,000 lbs)
- 9 sizes, capacities 5 – 500 kN
- Drive speed up to 1500 rpm
- Cubic housing, universal mounting for easier alignment
- Self-locking trapezoidal screw
- Grease-lubricated
- Worm gear pairs in two ratio steps (normal “N” and slow “L”)
Worm Gear Screw Jack

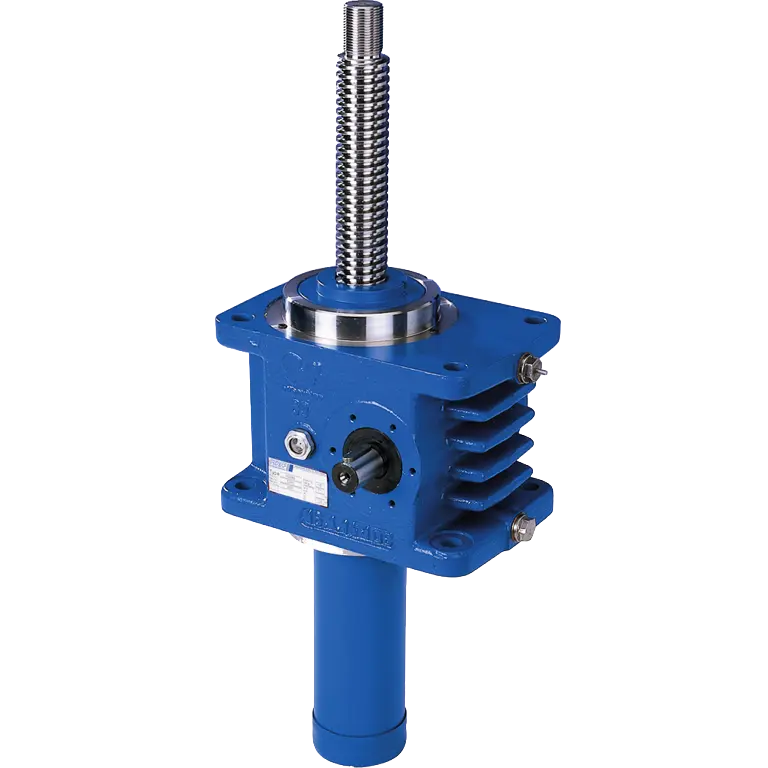

HSE
A heavy-duty, high-performance series built for medium-to-high lifting speeds and an increased duty cycle. Cast cooling fins on the spheroidal graphite iron housing improve heat dissipation under dynamic use.
Features and Benefits:
-
- Load range: 500 kg (1,100 lbs) – 100,000 kg (220,000 lbs)
- 8 sizes, capacities 5 – 1000 kN
- Drive-motor speed up to 3000 rpm
- Self-locking trapezoidal screw, optional ball screw
- Separate lubrication circuits: grease on the screw, oil-bath on the worm gears
- Worm gear/wheel sets in two ratios (normal “N” and slow “L”)
- Worm gear and shafts case-hardened and ground
Worm Gear Screw Jack

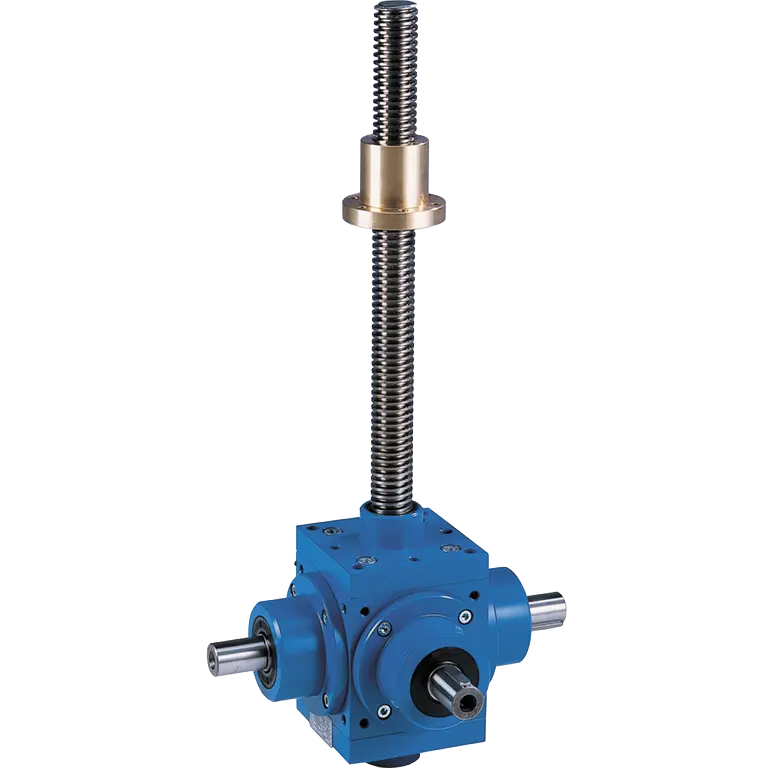

SHG
A quick-lifting bevel gear series for applications with high dynamic loading and high duty cycles. Helical spiral-tooth bevel gears deliver high efficiency and a long service life.
Features and Benefits:
- Load range: 1,500 kg (3,300 lbs) – 9,000 kg (19,800 lbs)
- 4 sizes, capacities 15 – 90 kN
- Drive-motor speed up to 3000 rpm
- Self-locking trapezoidal screw, optional ball screw
- Separate lubrication circuits: grease on the screw, oil-bath on the bevel gears
- Bevel gear ratios of 2:1 and 3:1
- Bevel gears and shafts case-hardened and ground
Worm Gear Screw Jack
SSP
A fully stainless-steel series built for corrosive, washdown, and other harsh environments, such as pulp and paper machinery. Standard kits can be mechanically coupled into arrays to reach the required system capacity.
Features and Benefits:
- Load range: 5,000 kg (11,000 lbs) – 25,000 kg (55,000 lbs)
- 4 sizes, capacities 50 – 250 kN
- Drive speed up to 1500 rpm
- Self-locking trapezoidal screw
- Entirely stainless-steel construction, integrally cast swivel brackets
- Grease-lubricated
- Worm gear pairs in two ratio steps (normal “N” and slow “L”)
- Standard kits mechanically couple into arrays for higher system capacity
