ELKAER Trimmer Bars – HK
The ELKAER Trimmer Bar range covers applications from light trimming to heavy-duty cutting across multiple carrier platforms.
Key features include:
- Clean Cutting Performance: Clean, uniform cutting with low vibration knife systems.
- Versatile Vegetation Maintenance: Suitable for hedges, roadside vegetation, and shelterbelt maintenance.
- Low Noise Operation: Low-noise operation for urban and residential environments.
- Wide Carrier Compatibility: Compatible with tractors, tool carriers, mini loaders, and excavators.
- Flexible Trimming Angles: Supports horizontal, vertical, and angled trimming applications.
- Long Service Life: Durable knife blades designed for extended lifespan.
- Multiple Mounting Options: Mounting options available for reach arms or direct carrier attachment.
| HK 1300-3 | HK 1600-3 | HK 1500-5 | HK 2000-5 | HK 3000-5 | HK 2000-10 | |
| Weight | 55 lbs (25 kg) | 66 lbs (30 kg) | 110 lbs (50 kg) | 220 lbs (100 kg) | 331 lbs (150 kg) | 507 lbs (230 kg) |
| Working Width | 51.2″ (1.3 m) | 63″ (1.6 m) | 59″ (1.5 m) | 79″ (2 m) | 118″ (3 m) | 79″ (2 m) |
| Max. Branch Diameter | Ø 1.2″ (30 mm) | Ø 2″ (50 mm) | Ø 3.9″ (100 mm) | |||
| Knives | 36 pcs. (double knife) |
44 pcs. (double knife) |
21 pcs. | 27 pcs. | 35 pcs. | 14 pcs. |
| Hydraulic Requirements | 6.6 GPM (25 L/min.) | 7.9 GPM (30 L/min.) |
9.2 GPM (35 L/min.) | 13.2 GPM (50 L/min.) |
||
| Options | Weld-on bracket, Brackets, excavator | |||||

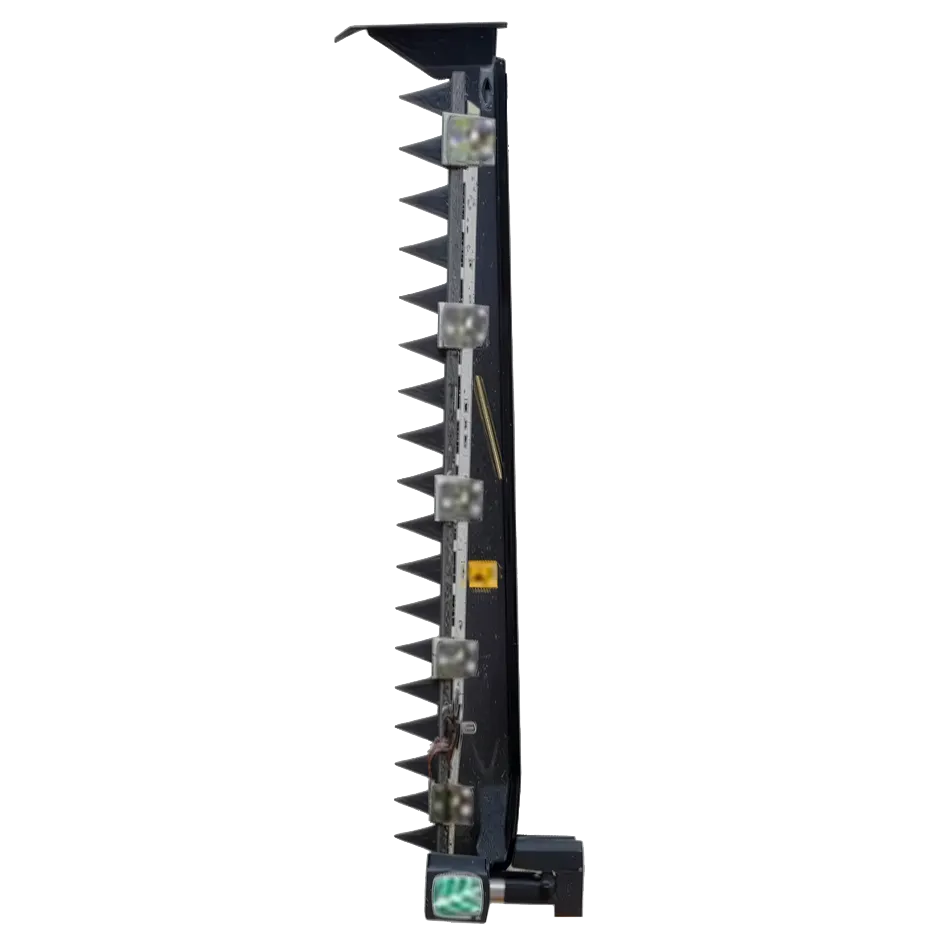

HK1300-3 / HK1600-3: Compact Trimmer Bars
The HK1300-3 and HK1600-3 compact trimmer bars are engineered for smaller tool carriers and are perfect for precise hedge maintenance, capable of handling branches up to Ø 30 mm (1.2″). Their opposing double-knife system ensures smooth, accurate cutting while minimizing vibration, and their low-noise operation makes them particularly well suited for urban and residential environments. When combined with a power arm, these trimmer bars offer efficient trimming in horizontal, vertical, and angled positions, maximizing versatility and control.

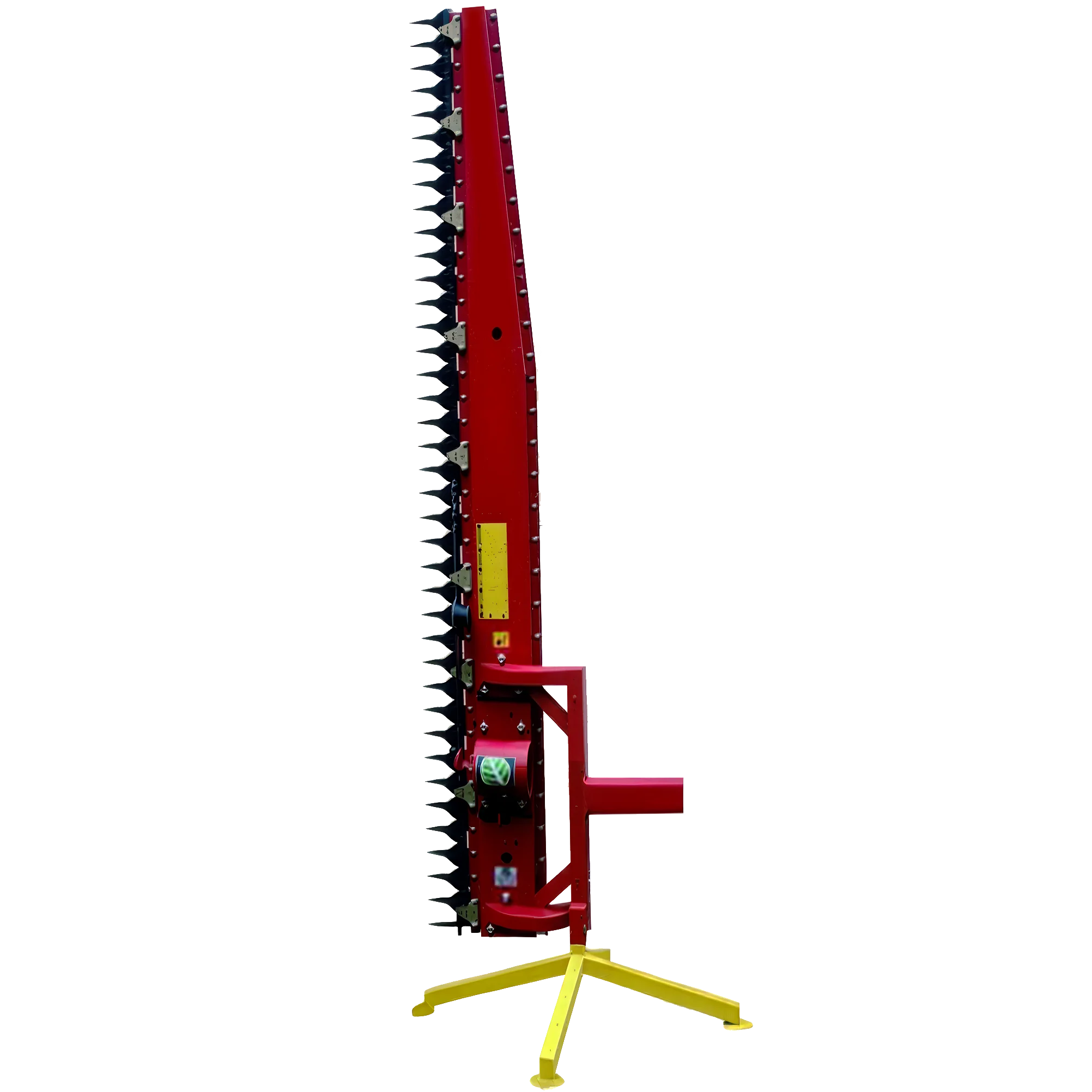

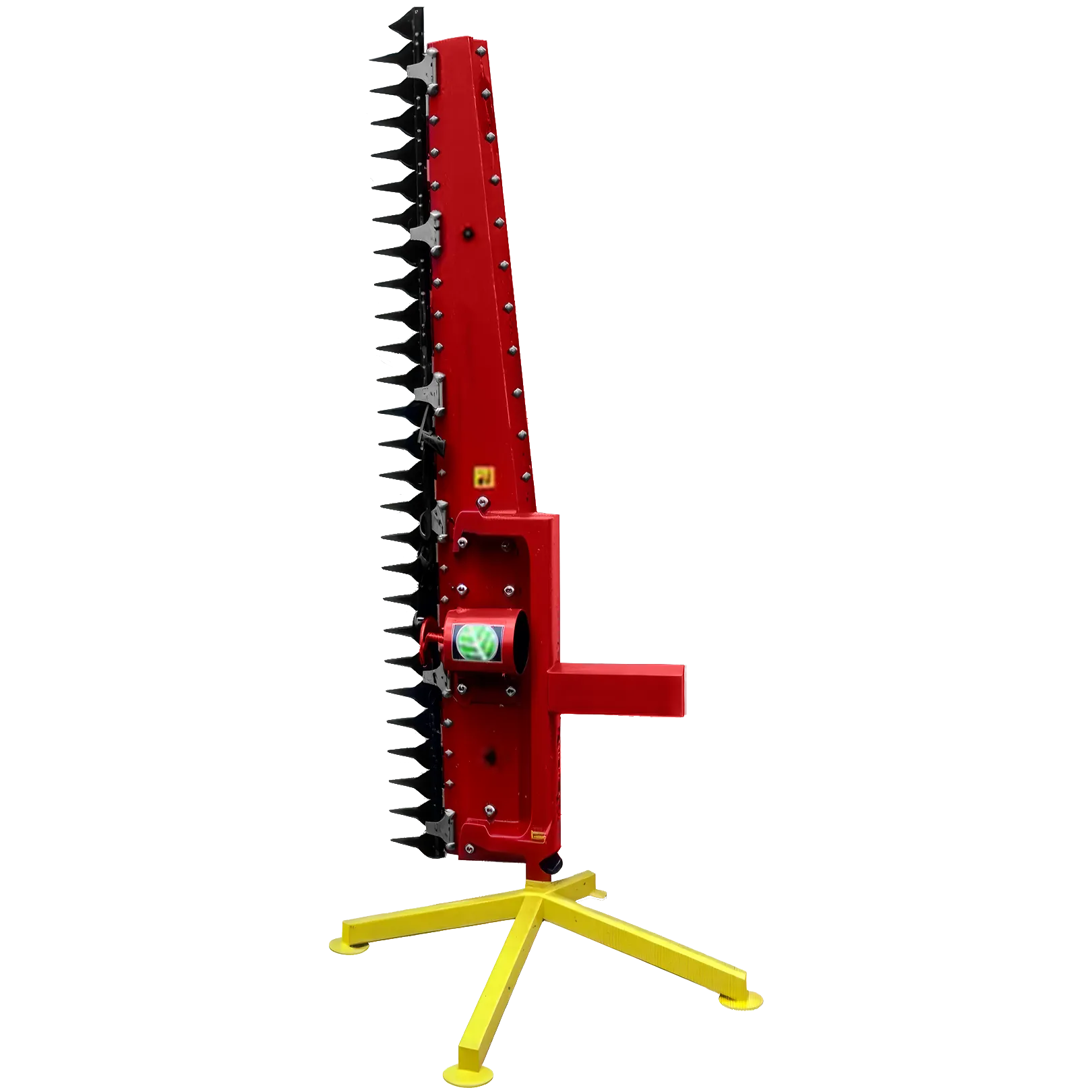

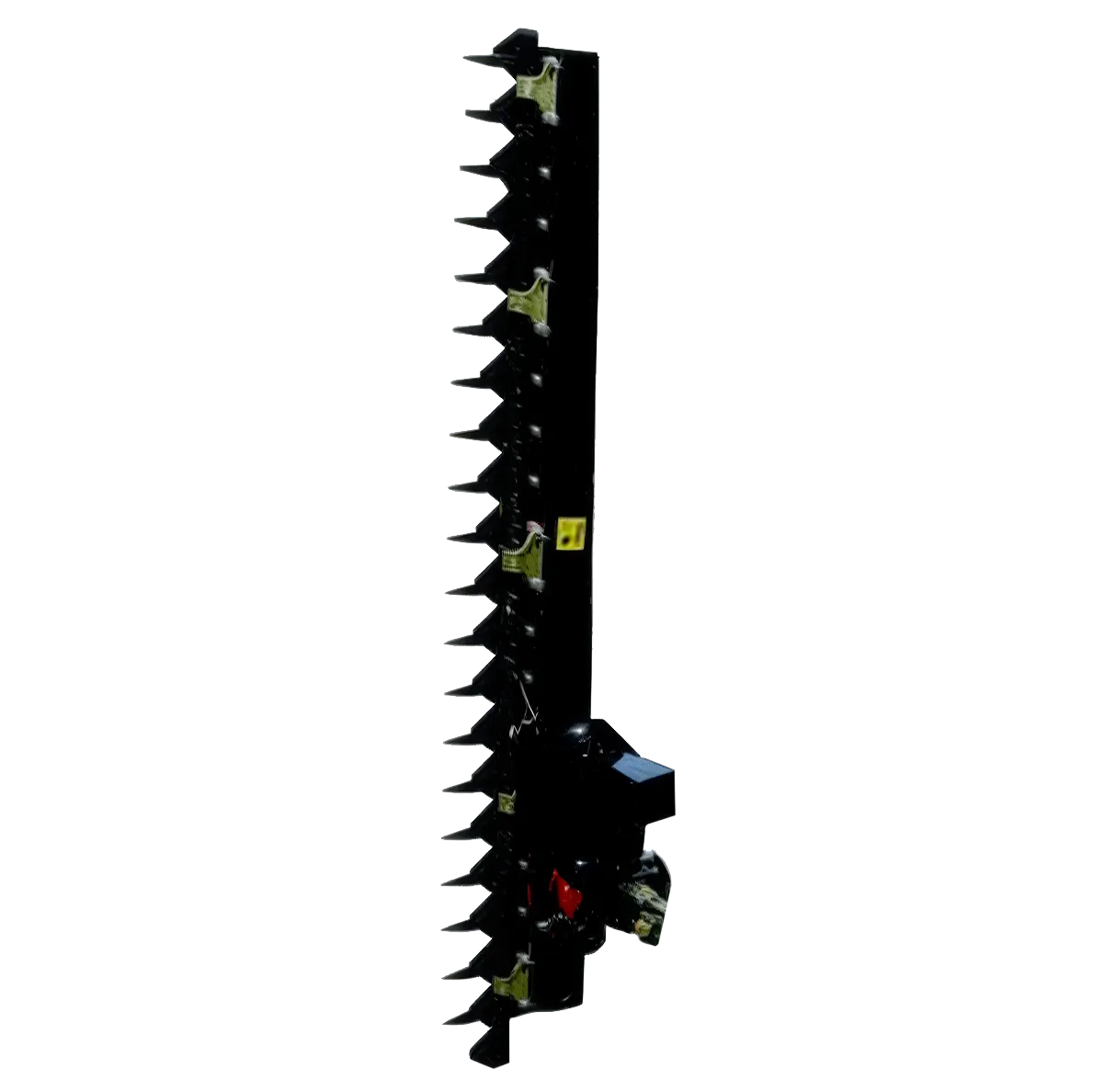

HK1500-5 / HK2000-5 / HK3000-5: Heavy-Duty Maintenance Trimmer Bars
The HK1500-5, HK2000-5, and HK3000-5 heavy-duty maintenance trimmer bars are designed for regular hedge and roadside vegetation work, cutting branches up to Ø 50 mm (2″) with robust knife blades that guarantee consistent performance and durability. These trimmer bars are highly adaptable, easily mounting on tractors, mini loaders, or excavators via reach arms, frames, or quick couplers, making them a flexible solution for a wide variety of hedges and vegetation types.

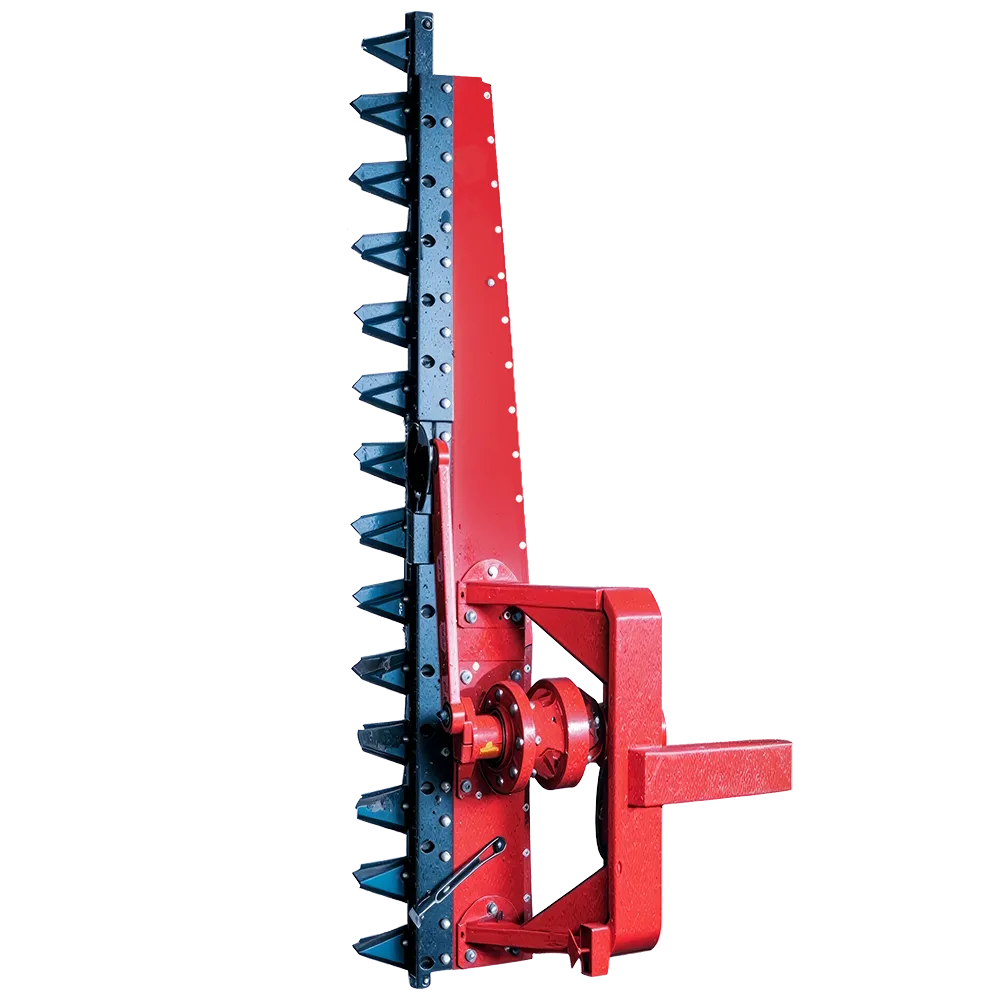

HK2000-10: Extreme Heavy-Duty Trimmer Bar
The HK2000-10 extreme heavy-duty trimmer bar is built for the most demanding applications, efficiently cutting branches up to Ø 100 mm (3.9″). It is optimized for larger carriers and excels at clearing overgrown vegetation along roadsides and forest paths. Hardened knife blades reduce maintenance requirements, while the heavy-duty drive system maintains consistent cutting speed under load. Despite its high-performance capability, the HK2000-10 operates with relatively low noise levels, balancing power with operational comfort.
